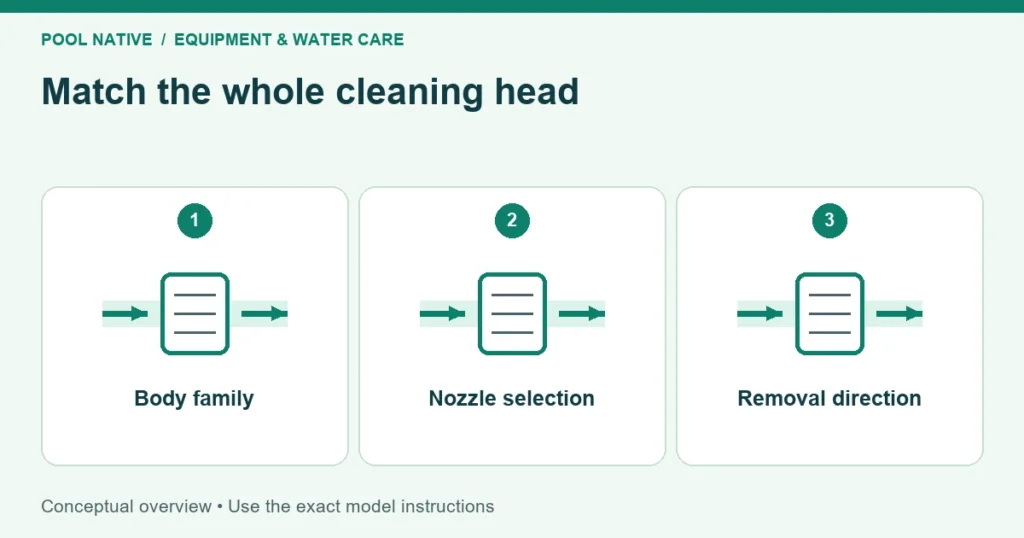

Replacement in floor pool cleaning heads must match more than the visible cap. The floor body, locking style, nozzle opening, and intended movement all matter. Record the existing head and its location before ordering a replacement or retrofit.
A part described as universal still has a defined compatibility list. It does not fit every body or preserve every nozzle setting automatically. Use the manufacturer’s current guide for the exact replacement family.
Build a record for each head
Start with the pool’s installation plan, equipment records, and any part numbers on a safely removed head. Photograph the cap, side, underside, and floor fitting without placing fingers into an operating opening. Keep the head labeled with its original location.
| Detail to record | Why it matters |
|---|---|
| System and head family | Narrows the compatible replacement range |
| Installed head generation | Original and retrofit parts may differ |
| Floor body and locking method | Determines physical fit and removal method |
| Nozzle opening or flow setting | Preserves the circuit’s intended water demand |
| Fixed, indexing, or spinning movement | Preserves the head’s cleaning function |
| Exact pool location | Prevents exchanging unlike nozzles |
| Color and finish | Matches appearance after mechanical fit is confirmed |
Do this for each distinct head type, not just one convenient head on a step. A pool can use different openings or functions in different locations. The easiest head to reach may not represent those on the floor.
Identify the locking system before removal
Stop the pumps and prevent automatic restart before removing a head. Use the correct tool for the installed part. Do not assume counterclockwise always unlocks a pool cleaning head.
The cited Paramount owner manual gives different removal directions for its large and small nozzle families. Pentair’s QuikJet guide also distinguishes Caretaker CT99 bayonet and threaded versions. Their removal instructions are not interchangeable.
Follow the instructions for the part actually installed in the body. A previous owner may have fitted retrofit internals. If the tool engages but the part will not release as directed, stop before damaging the collar.
Visible diameter alone is not enough to identify compatibility. Tabs, thread form, seating depth, and seals can differ. Have clear photographs and the original part checked by the manufacturer or an experienced supplier when markings are missing.
Preserve the nozzle opening
Paramount states that nozzle sizes and locations are specific to the pool. Moving them can impair cleaning and damage equipment. Record the existing opening or documented setting before disassembling an adjustable head.
Do not choose the largest opening because it sounds like an upgrade. Water is shared within the active circuit. Changing one outlet’s demand can alter the performance of neighboring heads and the distribution system.
Pentair’s QuikJet guide provides separate opening and flow charts for different retrofit families. The charts are not identical. A setting labeled high flow in one family is not a universal specification for another.
If the old head is broken and its setting cannot be identified, consult the original plan or installer. Guessing from the surrounding heads may miss an intentional difference. A compatible body fit does not answer the hydraulic sizing question.
Match the movement and purpose
Determine whether the head is meant to rotate incrementally, spin, or remain fixed. Some Paramount PCC2000 and Vantage installations use fixed nozzles near the debris drain. Replacing one with a rotating head would change its intended direction of flow.
The cited QuikJet guide includes ratcheting, weighted, and spinning replacement versions for specified families. Confirm which version is appropriate for the installed system. A different movement style is not automatically a better replacement.
If the complaint is simply that the old head does not visibly spin, use the rotation diagnosis before buying anything. Some heads need repeated complete cycles to advance around the pool. Normal indexing can be mistaken for failure during a brief inspection.
Original part or retrofit
An original compatible replacement can preserve the established setup with fewer identification questions. A documented retrofit may be useful when original parts are unavailable or a supported alternative is preferred. Both still require the correct opening, movement, and installation method.
Read the retrofit’s complete compatibility statement, not only its product title. Confirm whether the purchase contains the full head, internal mechanism, cap, seal, or adapter. Those are different repair scopes even when listings use similar names.
Check whether a special removal or installation tool is required and whether it is included. Confirm any return restrictions before opening or installing the part. Keep the old head and packaging until the replacement has been verified.
Avoid modifying tabs, filing threads, or using adhesive to make an uncertain part fit. An insecure head can release during operation. The correct solution is a verified compatible assembly or a professional repair of the floor body.
Inspect the body before blaming the head
A cracked collar, damaged locking surface, or accumulated debris can prevent a new head from seating correctly. Inspect accessible surfaces with the system safely stopped. Do not force a replacement into a damaged fitting.
If several heads in one zone fail together, investigate their shared supply before buying several replacements. The head and zone troubleshooting guide explains that distinction. A new head cannot restore water that never reaches its circuit.

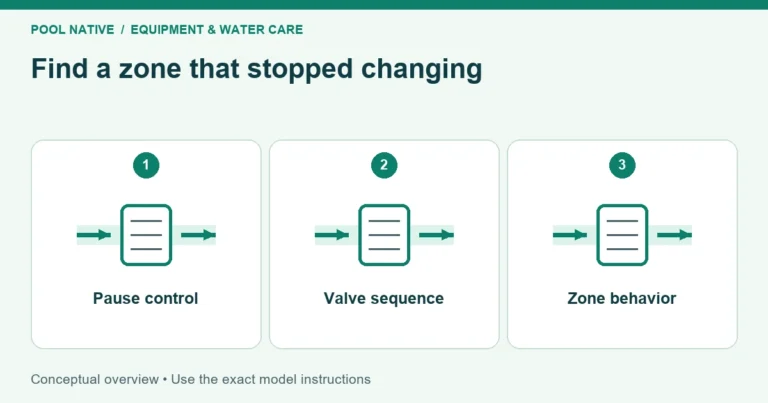

If the distribution sequence is stuck, follow the water valve checks. Replacing local parts while the shared fault remains can create an expensive collection of unused spares. Establish the failure level first.
Install and verify one identified repair
Follow the replacement manufacturer’s instructions for setting, seating, and locking the head. Return it to the documented location. Do not treat a successful quarter turn as proof of correct fit if the part remains loose or sits incorrectly.
Observe repeated activations after safe restart. Confirm full extension, retraction, and the intended directional behavior. Check neighboring heads in the same circuit and the remaining distribution sequence.
For example, a replacement that rises strongly while adjacent heads weaken may have the wrong opening. A secure fit and matching color would not reveal that mistake. Comparing the entire zone provides the missing check.
Keep the replacement record
Save the exact part number, opening setting, location, installation date, and manufacturer instructions. Note whether it is an original or retrofit assembly. This prevents the next repair from starting with an unidentified cap.
For widespread damage or obsolete parts, request an itemized assessment before replacing every head. The repair budget guide helps compare local repairs with a larger renewal. Keep appearance choices separate from the fit and flow requirements that determine whether the repair works.
